- Commodity name: ECB evaporative condenser
The evaporative condenser is one of the most important parts of the whole refrigeration system.The condenser condenses the refrigerant gas inside the coil and complete a heat exchange circle.The evaporative condenser is widely applied to cold storage,ice-store,chemical industry,supermarket and etc.
APPLICATION
The evaporative condenser is one of the most important parts of the whole refrigeration system.The condenser condenses the refrigerant gas inside the coil and complete a heat exchange circle.The evaporative condenser is widely applied to cold storage,ice-store,chemical industry,supermarket and etc.

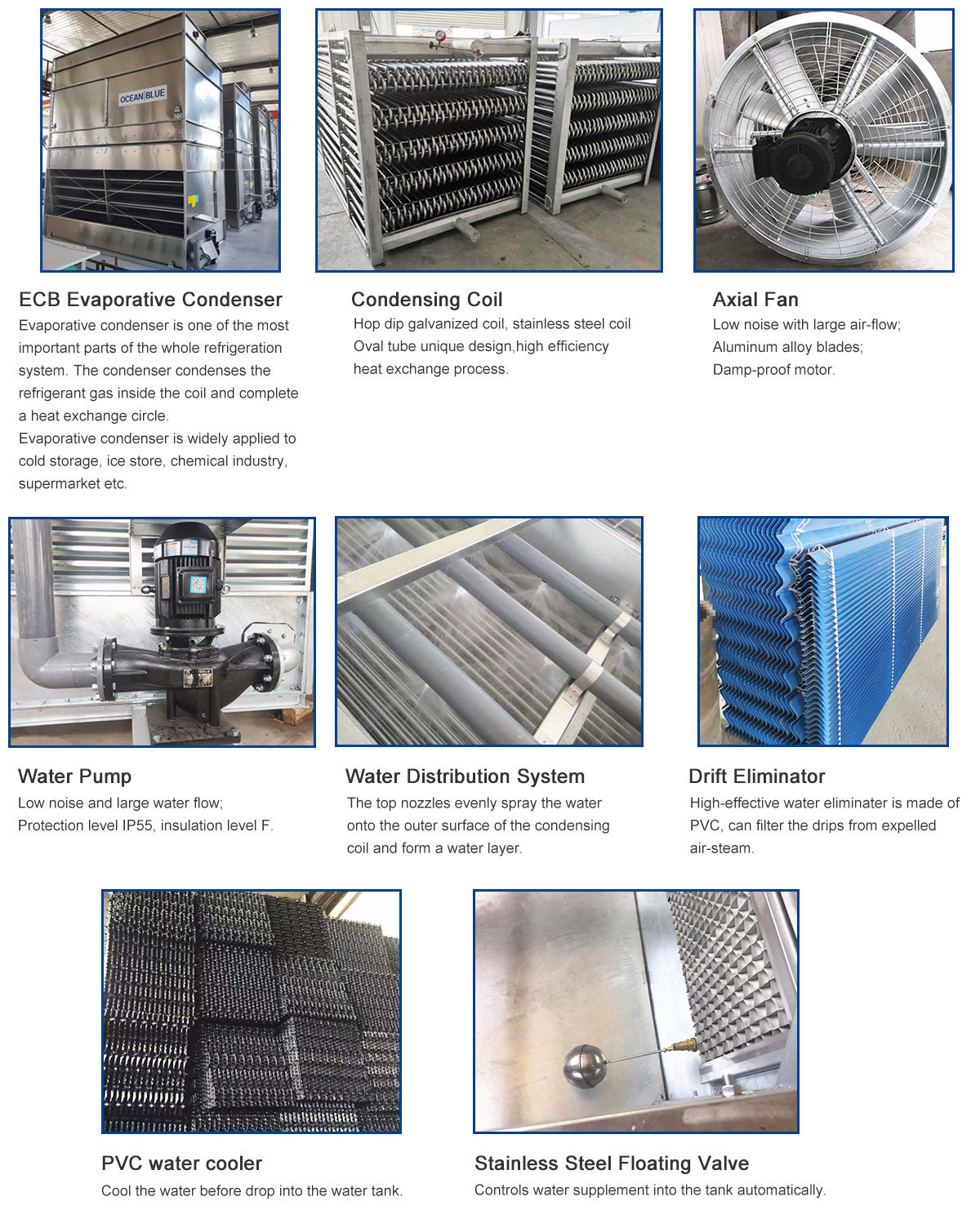

WORKING PRINCIPLE
During operation,the cooling water is pumped up to the top nozzle and evenly sprayed onto the outer surface of condensing coil and form a water layer.
The high temperature refrigerant gas come out from compressor and get into the condensing coils.Under a high speed wind bring by the fans on the top,the water layer on the outer surface of condensing coil evaporates and takes away the heat of the refrigerant.The refrigerant condenses into liquid and flow back to the compressor.Some water absorb heat and become steam,the rest water drop into the water tank for re-circulation.The hot steam is blown out from top and rest vapour remain on the top water stopper.The floating valve in the tank control water supplement into the tank automatically.
FEATURES
Power-saving;Water-saving;Space-saving
High Heat Exchange Ability
Easy to install
Low maintenance cost
Long lifetime
-
Model Heat Rejection (KW) Size(mm) Fan Water Pump Weight(Kg) Gas Inlet/ L W H Air flow Power Water flow Power Transport Operate Liquid outlet (m3/hr) (Kw) （L/s） (Kw) （mm） ECB300 300 2460 1850 3715 56000 2.2×2 12.5 2.2 2350 3600 DN80/DN65 ECB350 350 2460 1950 3715 56000 2.2×2 12.5 2.2 2490 3850 DN80/DN65 ECB400 400 2460 2100 3715 56000 2.2×2 12.5 2.2 2630 4100 DN80/DN65 ECB450 450 2460 2150 3940 60000 2.2×2 12.5 2.2 2840 4240 DN100/DN65 ECB500 500 2700 2250 3715 60000 2.2×2 12.5 2.2 3110 4910 DN100/DN65 ECB550 550 2700 2200 3940 60000 2.2×2 12.5 2.2 3270 4980 DN100/DN65 ECB600 600 2700 2250 3940 60000 2.2×2 12.5 2.2 3440 5250 DN100/DN65 ECB650 650 3690 2100 4240 90000 2.2×3 13.9 3 3790 5680 DN100/DN65 ECB700 700 3690 2150 4240 90000 2.2×3 13.9 3 3960 5910 DN100/DN65 ECB750 750 3690 2200 4240 90000 2.2×3 13.9 3 4300 6700 DN100/DN65 ECB800 800 3690 2250 4240 90000 2.2×3 13.9 3 4470 6950 DN100/DN65 ECB850 850 4240 2150 4240 120000 2.2×4 13.9 3 4850 7350 DN100/DN65 ECB900 900 4240 2200 4295 120000 2.2×4 24.7 4 5010 7920 DN100/DN65 ECB950 950 4240 2250 4295 120000 2.2×4 24.7 4 5230 8270 DN100/DN65 ECB1000 1000 5000 2150 4295 120000 2.2×4 24.7 4 5450 8980 DN125/DN80 ECB1050 1050 5000 2200 4295 120000 2.2×4 24.7 4 5610 9260 DN125/DN80 ECB1100 1100 5000 2200 4295 120000 2.2×4 24.7 4 5770 9430 DN125/DN80 ECB1150 1150 5000 2250 4295 120000 2.2×4 24.7 4 5920 9700 DN125/DN80 ECB1200 1200 5600 2200 4320 120000 2.2×4 27.8 5.5 6280 10160 DN125/DN80 ECB1250 1250 5600 2200 4320 140000 2.2×5 27.8 5.5 6430 10400 DN100×2/DN65×2 ECB1300 1300 5600 2200 4320 140000 2.2×5 27.8 5.5 6590 10580 DN100×2/DN65×2 ECB1350 1350 5600 2200 4450 168000 2.2×6 27.8 5.5 6740 10840 DN100×2/DN65×2 ECB1400 1400 5600 2250 4450 168000 2.2×6 27.8 5.5 6900 11130 DN100×2/DN65×2 ECB1450 1450 5600 2250 4500 168000 2.2×6 27.8 5.5 7070 11320 DN100×2/DN65×2 ECB1500 1500 5600 2250 4500 168000 2.2×6 27.8 5.5 7230 11470 DN100×2/DN65×2 ECB1600 1600 5600 2250 4570 168000 2.2×6 27.8 5.5 7500 11780 DN100×2/DN65×2 ECB1700 1700 5600 2900 4520 180000 4×3 39.7 7.5 8150 13900 DN100×2/DN65×2 ECB1800 1800 5600 3100 4520 225000 5.5×3 39.7 7.5 8410 14670 DN100×2/DN65×2 ECB1900 1900 5600 3100 4520 225000 5.5×3 39.7 7.5 8670 15060 DN100×2/DN65×2 ECB2000 2000 5600 3500 4520 255000 7.5×3 39.7 7.5 9180 16350 DN125×2/DN80×2 ECB2100 2100 5600 3500 4520 255000 7.5×3 39.7 7.5 9420 16860 DN125×2/DN80×2 ECB2200 2200 5600 3500 4520 255000 7.5×3 39.7 7.5 9650 17190 DN125×2/DN80×2 ECB2300 2300 5600 3600 4520 255000 7.5×3 39.7 7.5 9910 17580 DN125×2/DN80×2 ECB2400 2400 5600 3600 4570 255000 7.5×3 39.7 7.5 10180 18020 DN125×2/DN80×2 -
-
