Commodity name: Refrigeration Pump

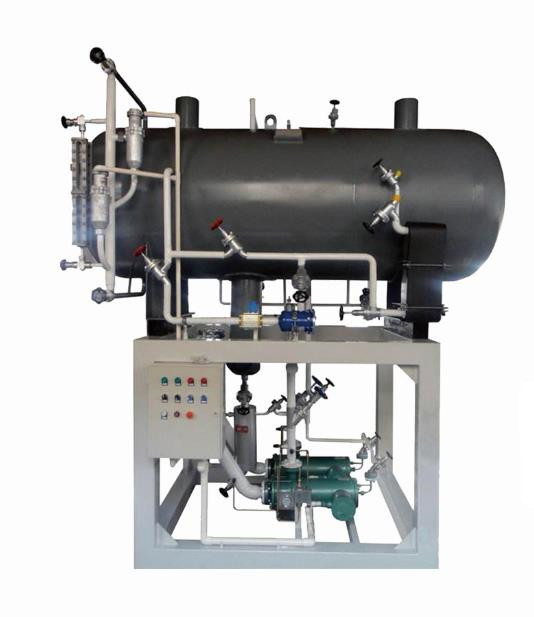

The barrel pump unit is composed of high pressure circulating liquid storage barrel, centrifugal ammonia pump, electrical control box, structural steel bracket, etc.
The ammonia pump is used with the barrel pump unit.

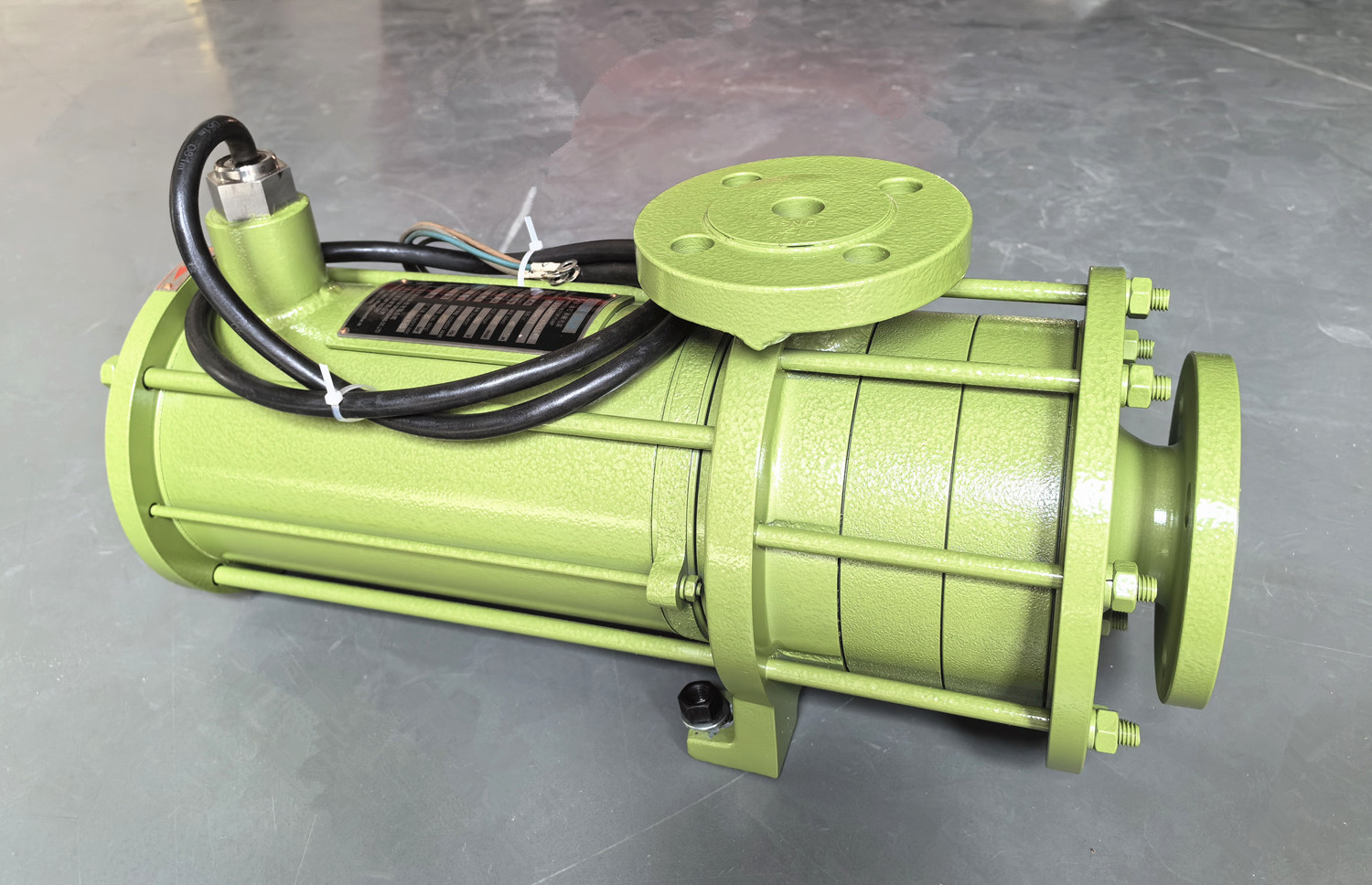

Refrigeration Pump

For pumping any media applied in refrigeration industry: ammonia,freon,silicone oil etc.

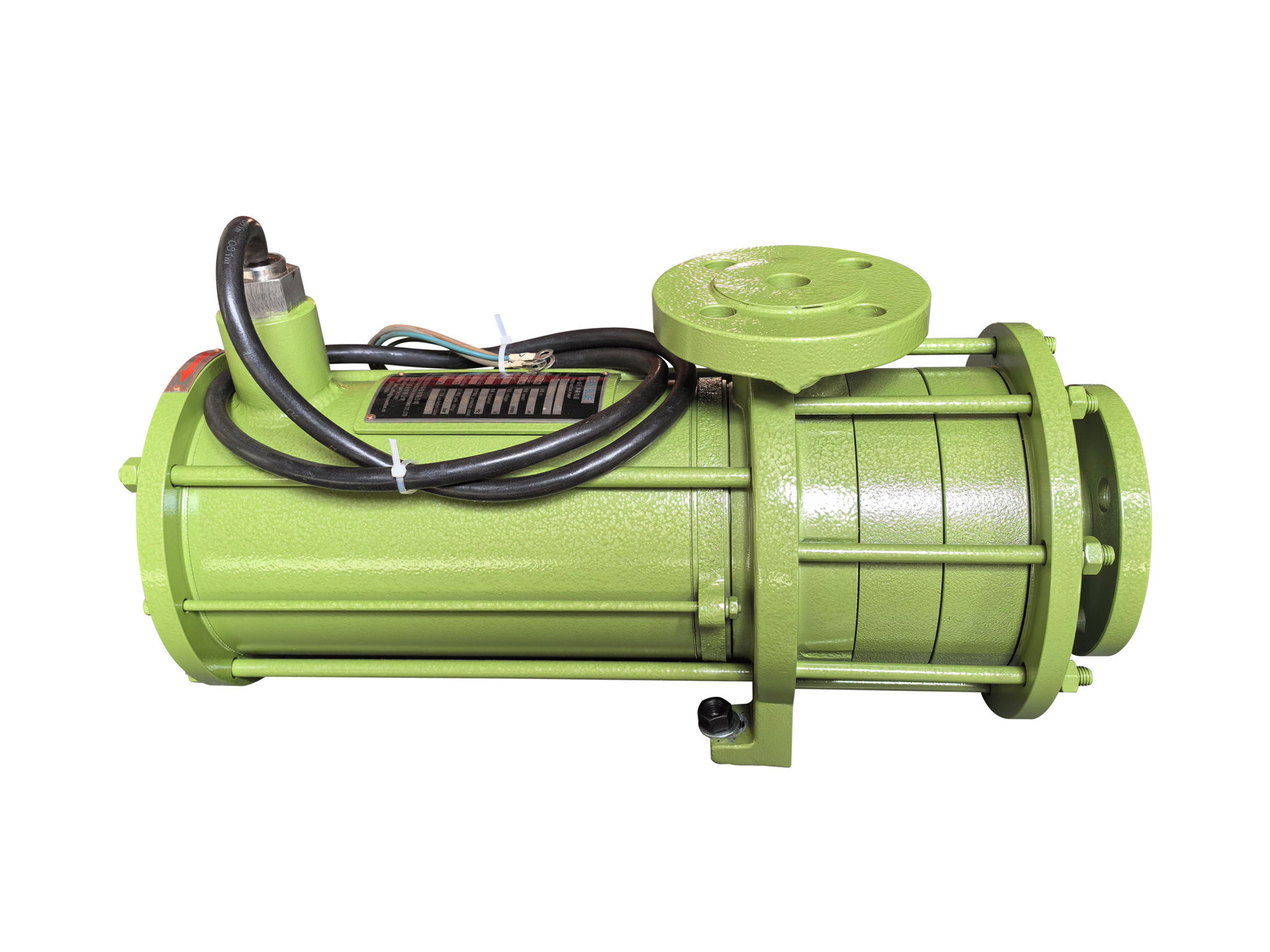

Performance of Refrigeration pump CMP32 Type

The CMP32 refrigeration pump is a multi-stage pump that adopts high-pressure internal circulation. Part of the medium is diverted from the high-pressure area at the outlet of the secondary impeller, flows into the shielded motor rotor cavity through the filter, and returns to the sub-high-pressure area of the secondary impeller through the axial hole. This high-pressure internal circulation method fully ensures the pressure in the rotor cavity of the shielded motor and prevents the medium from vaporizing in the pump.

This shunt simultaneously cools the shielded motor and lubricates the sliding bearing. When the pump is running, the axial force is hydraulically balanced automatically. The NPSH of the pump is very low. For example, when the flow rate is as high as 10m²h, the NPSH of the pump is only 0.8m.

PUMP TYPE	STAGE	Cap.(m³/h)	HEAD (M)	MOTOR DATA(KW)
CMP32	2	3	27	M3.0
	2	6	25	M3.0
	3	3	38	M3.0
	3	6	33	M3.0
	4	3	49	M3.0
	4	6	45	M3.0
	5	3	61	M3.0
	5	6	57	M3.0
	6	3	73	M3.0
	6	6	66	M3.0

Performance of Hermetic Pump CMP Type

CMP single-stage refrigeration pump adopts high-pressure internal circulation method. Part of the medium is diverted from the high-pressure area at the impeller outlet, flows into the axial hole through the filter, is pressurized by the auxiliary impeller again, enters the shielded motor rotor cavity, and finally returns to the high-pressure area at the impeller outlet. This high-pressure internal circulation method fully ensures the pressure in the rotor cavity of the shielded motor and prevents the medium from vaporizing in the pump. This shunt simultaneously cools the motor and lubricates the sliding bearings.

PUMP TYPE	STAGE	Cap.(m³/h)	HEAD (M)	MOTOR DATA(KW)
CMP	32-160	6.25	33	M3.0
		10	32	M3.0
		13	32	M3.0
	32-200	6.25	53	M4.5
		10	52	M4.5
		15	49	M4.5
	40-160	8	32	M3.0
		10	32	M3.0
		15	32	M4.5
		20	31	M4.5
	40-200	8	51	M4.5
		10	51	M4.5
		15	50	M6.5
		20	49	M6.5
		25	47	M6.5
	50-160	10	33	M4.5
		20	33	M4.5
		30	33	M6.5
		40	31	M6.5
		50	29	M6.5
	50-200	10	53	M6.5
		20	53	M6.5
		30	58	M8.5
		40	57	M8.5
		50	56	M8.5
